Import the template, place your artwork, print, cut & assemble!
For our masterclass with Adobe France. we made a cardboard Christmas tree. In order to show the process of creation with Illustrator for the cutting line. Dimensions for the preview and finally aero for the augmented reality.
We share the source files with the community.

 Paper Composite Board is a simple solution, lightweight & easy to produce!  CARDBOARD.design Structural Templates are here for you!
FEATURES
• Add your artwork, print &cut
• Structural files in .AI, .PDF, .DXF
• Ready for Honeycomb 16 mm
• Easy to print and cut
• Quick set up in half minute
TECHNICAL INFORMATION
PLANO DIMENSION FOR 1UP
• PRINT DIMENSION: 1140x1924x16MM RECTO
 CUT DIMENSION: 1200X1945X16MM

RULE LENGTH
THRU-CUT: 22404MM - CUT 100%
• V-CUT: 660MM

MATERIALS NEEDED
• HONEYCOMB BOARD 16MM (such as Re-board, Beelite, X-Board…)
• BOARD QUANTITY: X1
MINIMUM BOARD SIZE: 1200x2400MM
MINIMUM BOARD QUANTITY: 1X WITH 1200x2400MM

SUITABLE FOR
• WIDE PRINTER UV, LED, SCREEN-PRINTING…
• FLATBED CUTTER
• TESTED ON ZUND G3 ON RE-BOARD (ICB) 16MM & BEELITE (HCB) 16MM
FILES INCLUDED
PRODUCTION FILES
• 1UP FILES IN AI, PDF, DXF
• NESTED FILES 1200x2400MM IN AI, PDF, DXF

PREVIEW FILES
• 3D AR MODELS FOR ADOBE AERO
• 3D MODELS IN OBJ, GLB
• DIMENSION & STAGER FILES FOR 3D MOCKUP

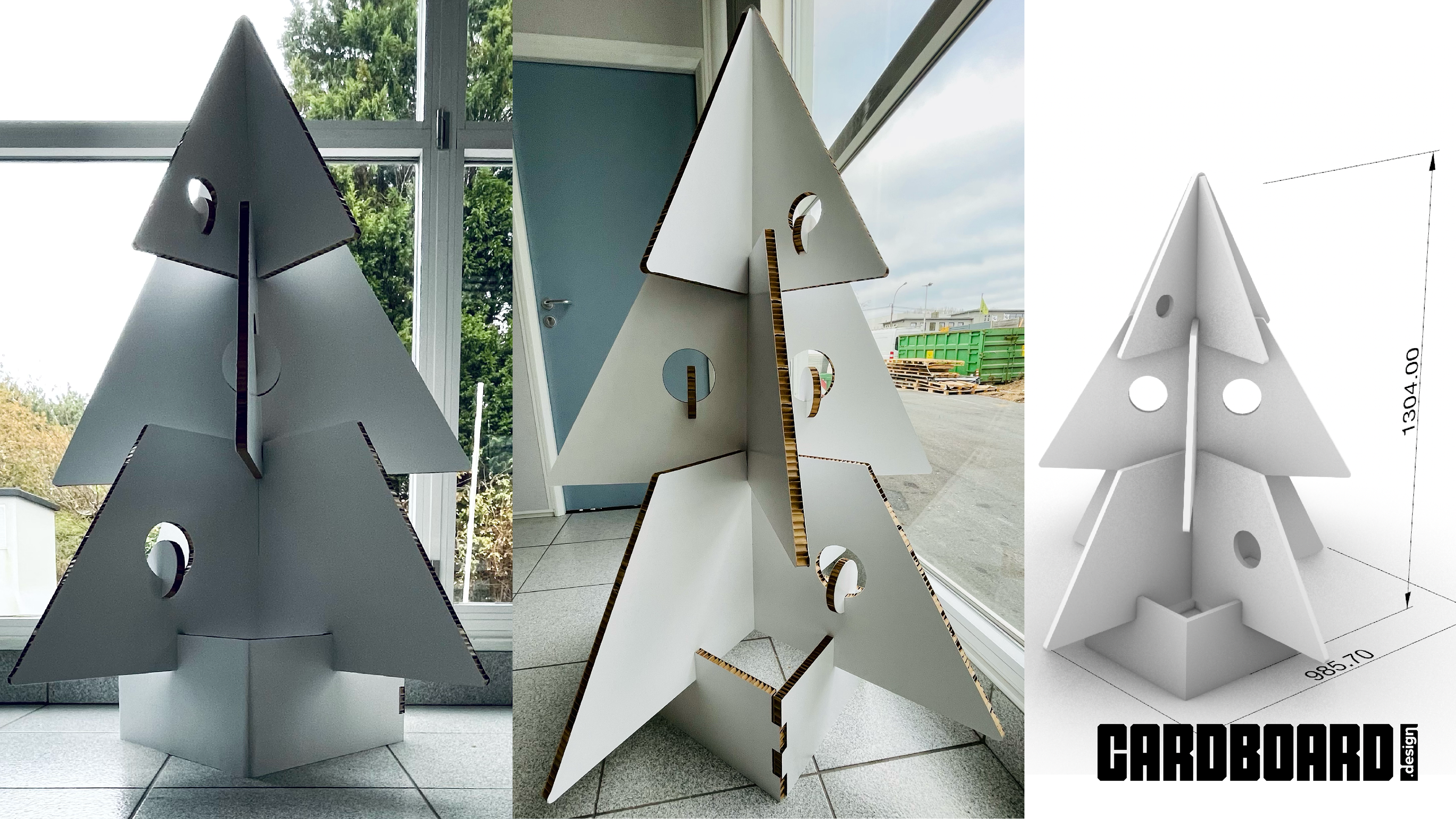

• PROTOTYPES & PRODUCT PICTURES

TECHNICAL DATA
• 1 Video guide and live demo on Youtube
AR PREVIEW
Scan the QRCODE and view the product in AR in the real world and real dimension.
Click above to download it!
