Import the template, place your artwork, print, cut & assemble!

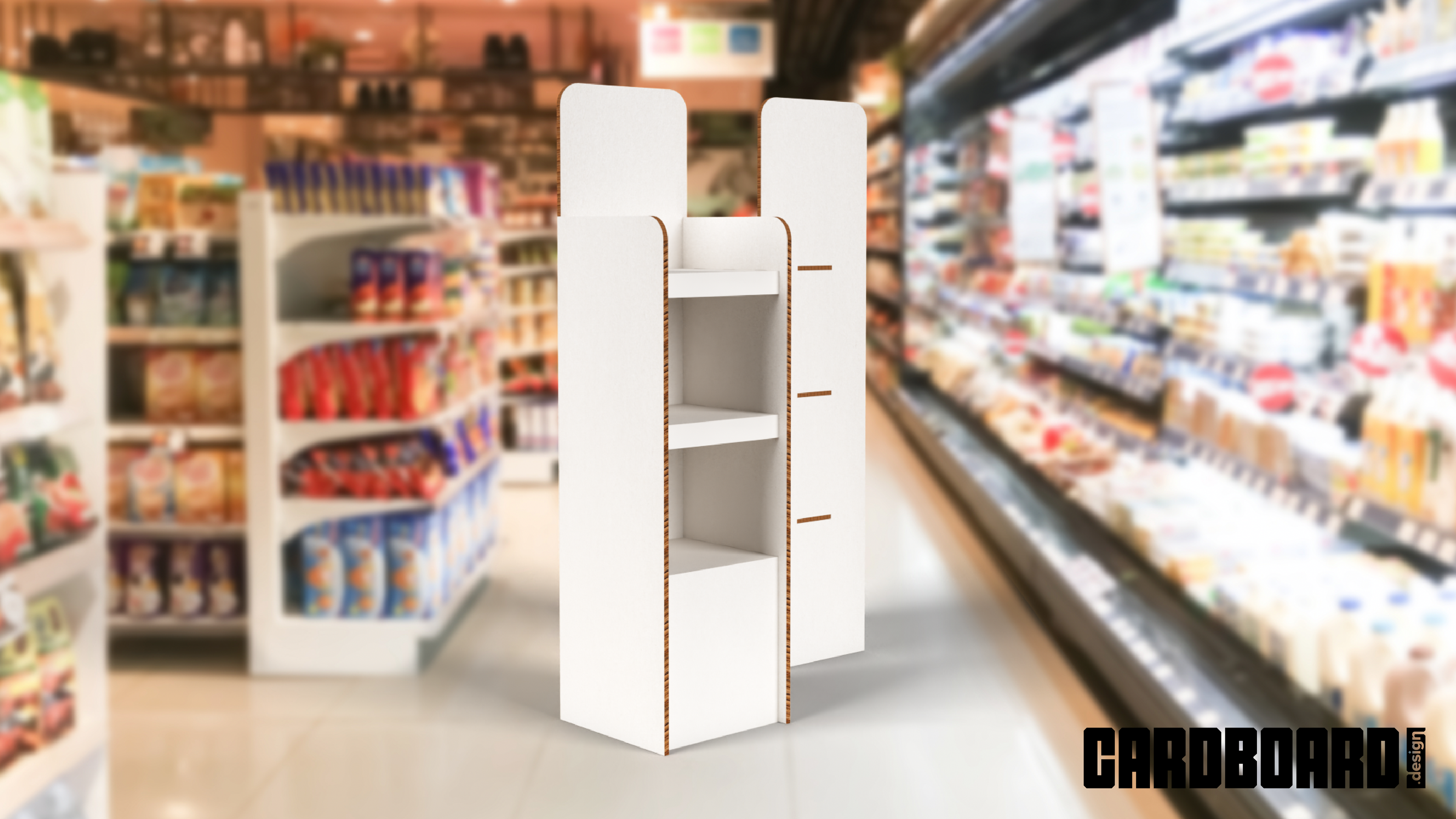

Do you want to promote a product in the store with a floor display? Add your graphic, grab a board, print & cut… and it's done!
 Paper Composite Board is a simple solution, lightweight & easy to produce!  CARDBOARD.design Structural Templates are here for you!
FEATURES
• Add your artwork, print &cut
• Structural files in .AI, .PDF, .DXF
• Ready for Honeycomb 16 mm
• Easy to print and cut
• Quick set up in half minute
TECHNICAL INFORMATION

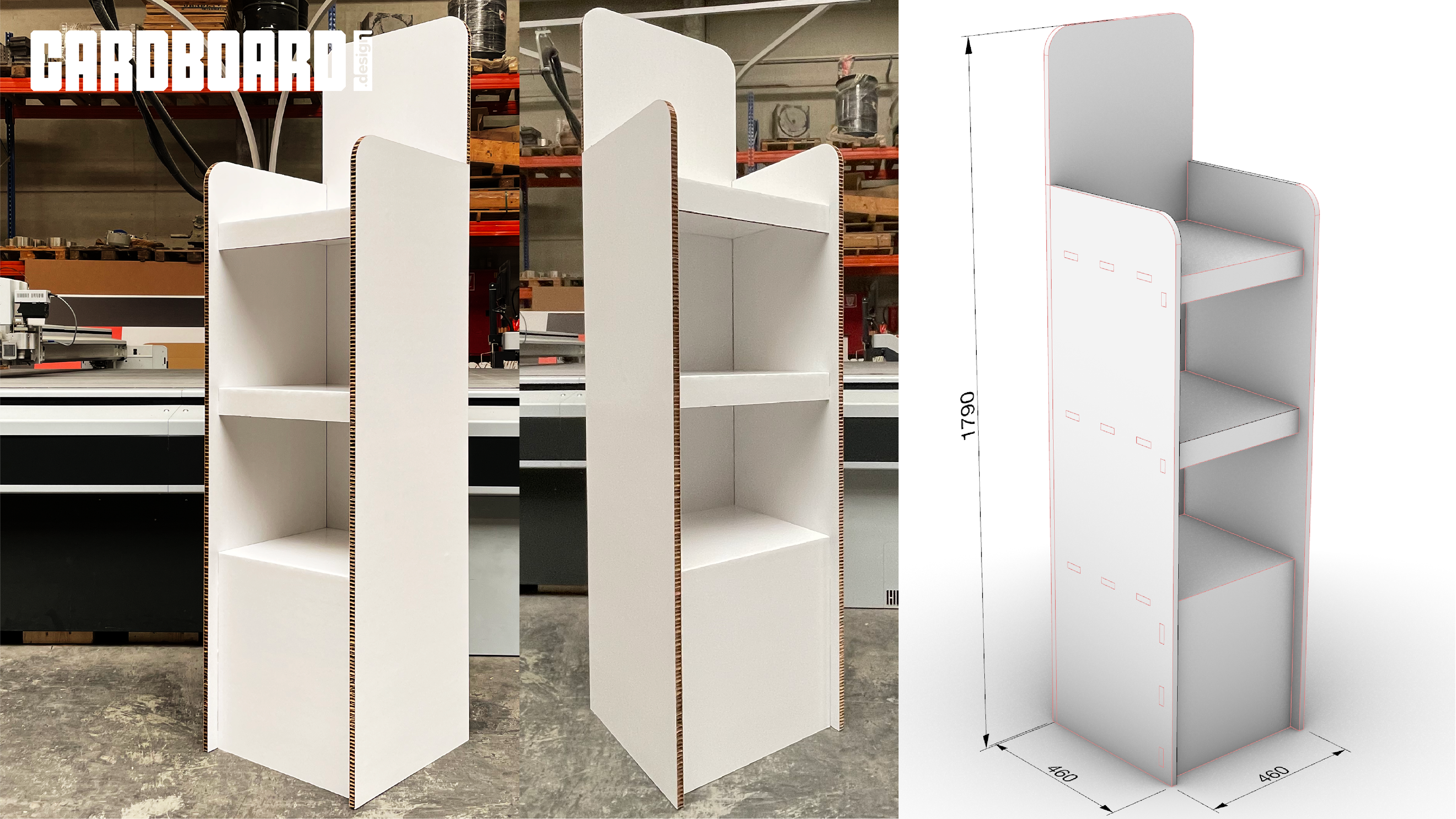

PLANO DIMENSION FOR 1UP
• PRINT DIMENSION: 1476x2358x16MMRECTO & VERSO
 CUT DIMENSION: 1456x2338x16MM

RULE LENGTH
THRU-CUT: 14392Mm - CUT 100%
• V-CUT: 4124MM
• SCORE: 3546MM - CUT 90%

MATERIALS NEEDED
• HONEYCOMB BOARD 16MM (such as Reboard, Beelite, X-Board…)
• BOARD QUANTITY: X1
MINIMUM BOARD SIZE: 1600x2400MM
MINIMUM BOARD QUANTITY: 1X WITH 1600x2400MM

SUITABLE FOR
• WIDE PRINTER UV, LED, SCREEN-PRINTING…
• FLATBED CUTTER
• TESTED ON ZUND G3 ON RE-BOARD (ICB) 16MM & BEELITE (HCB) 16MM
FILES INCLUDED
PRODUCTION FILES
• 1UP FILES IN AI, PDF, DXF
• NESTED FILES 1600x2400MM IN AI, PDF, DXF

PREVIEW FILES
• 3D AR MODELS FOR ADOBE AERO
• 3D MODELS IN OBJ
• DIMENSION FILES FOR 3D MOCKUP
• PROTOTYPES & PRODUCT PICTURES

TECHNICAL DATA
• 1 SUMMARY PDF WITH INFORMATION & SETUP

AR PREVIEW
Scan the QRCODE and view the product in AR in the real world and real dimension.
Click above to download it!
