Import the template, place your artwork, print, cut & assemble!

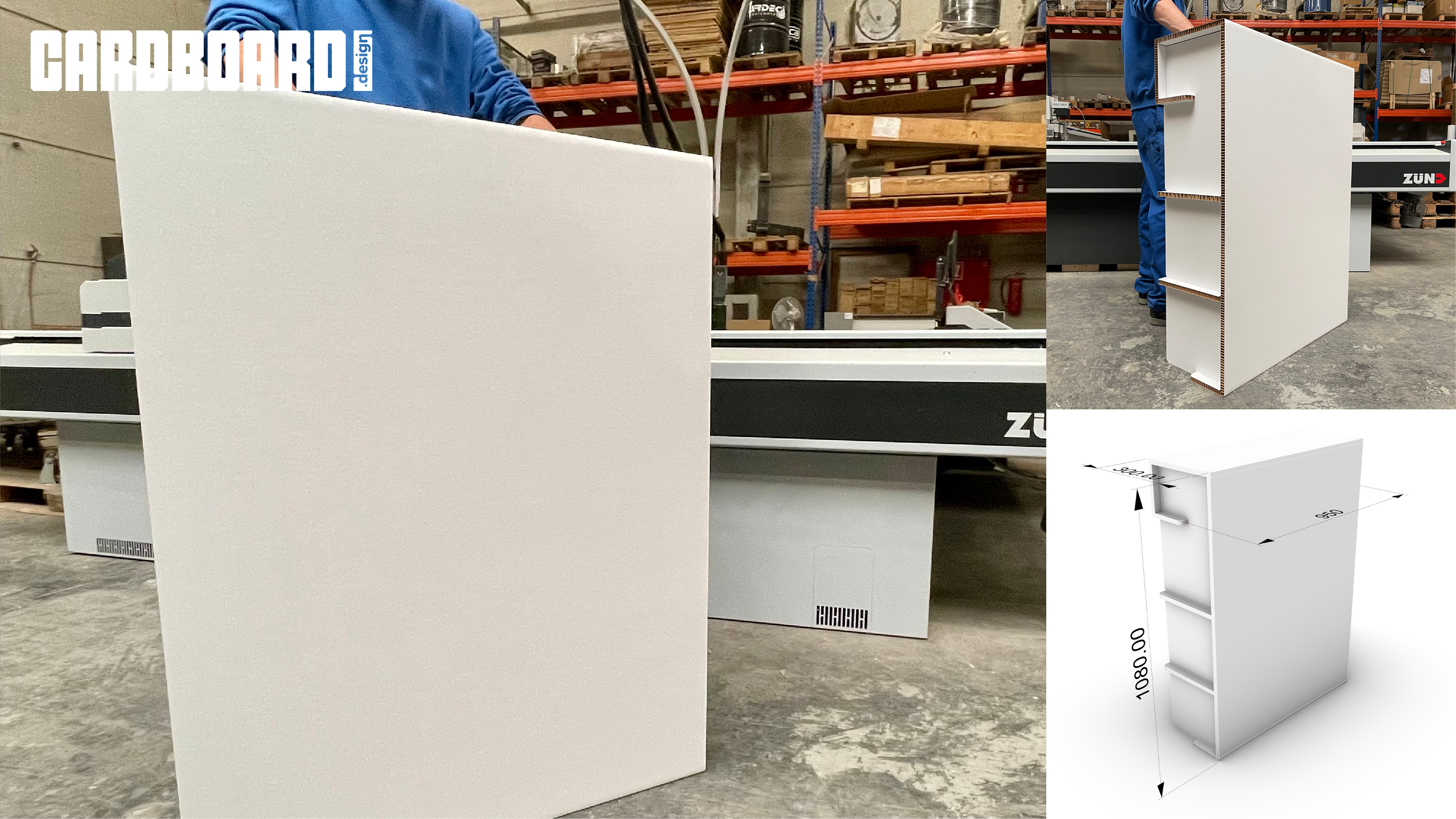

Do you need attention for an Exhibition or fair with our Floor display? With a simple solution, lightweight & easy to produce? CARDBOARD.design Structural Templates are here for you!
FEATURES
• Add your artwork, print &cut
• Structural files in .AI, .PDF, .DXF
• Ready for Honeycomb 16 mm
• Easy to print and cut
• Quick set up in half minute
TECHNICAL INFORMATION
PLANO DIMENSION FOR 1UP
• PRINT DIMENSION: 1578x2204x16MM
 CUT DIMENSION: 1558x2184x16MM

RULE LENGTH
THRU-CUT: 23295MM
• V-CUT: 3800MM

MATERIALS NEEDED
• HONEYCOMB BOARD 16MM (such as Reboard, Beelite, X-Board…)
• BOARD QUANTITY: X1 OR X2
MINIMUM BOARD SIZE: 1200x2400MM (BEST 2400x1600MM)​​​​​​​
MINIMUM BOARD QUANTITY: 1 WITH 2400X1600MM & 2 WITH 2400X1200MM

SUITABLE FOR


• WIDE PRINTER UV, LED, SCREEN-PRINTING…
• FLATBED CUTTER
• TESTED ON ZUND G3 ON RE-BOARD (ICB) 16MM & BEELITE (HCB) 16MM
FILES INCLUDED
PRODUCTION FILES
• 1UP FILES IN AI, PDF, DXF
• NESTED FILES 1200X2400MM IN AI, PDF, DXF - 2 BOARDS
• NESTED FILES 1600X2400MM IN AI, PDF, DXF - 1 BOARDS

PREVIEW FILES
• 3D AR MODELS FOR ADOBE AERO
• 3D MODELS IN OBJ
• DIMENSION FILES FOR 3D MOCKUP
• PROTOTYPES & PRODUCT PICTURES

TECHNICAL DATA
• 1 SUMMARY PDF WITH INFORMATION & SETUP

AR PREVIEW
Scan the QRCODE and view the product in AR in the real world and real dimension.
