Import the template, place your artwork, print, cut & assemble!

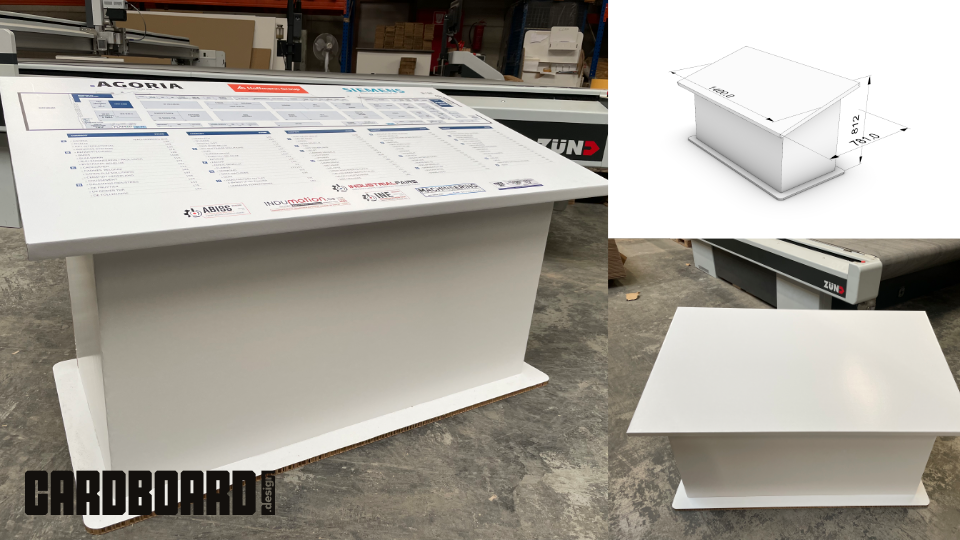

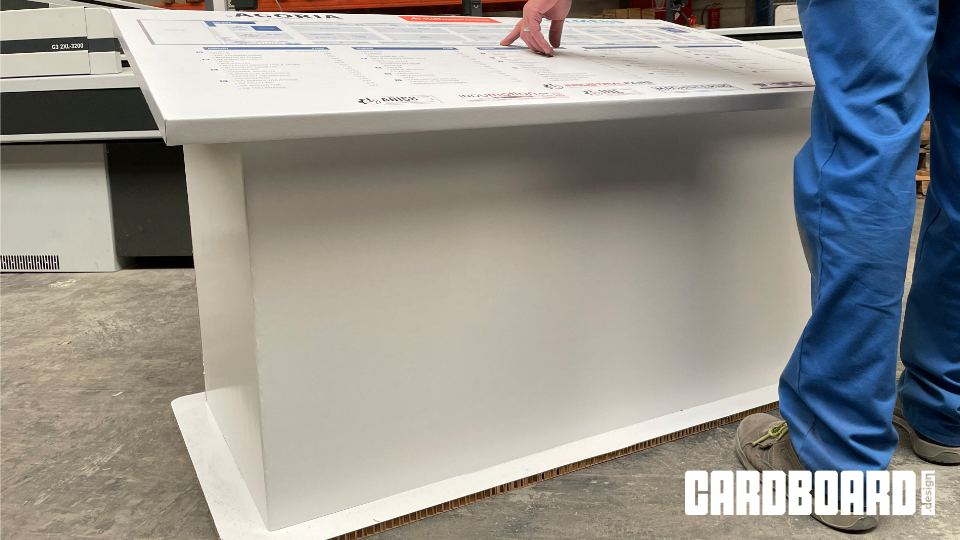

Do you need attention for an Exhibition or fair with our Floor display? With a simple solution, lightweight & easy to produce? CARDBOARD.design Structural Templates are here for you!
FEATURES
• Add your artwork, print &cut
• Structural files in .AI, .PDF, .DXF
• Ready for Honeycomb 16 mm
• Easy to print and cut
• Quick set up in half minute
TECHNICAL INFORMATION
PLANO DIMENSION FOR 1UP
MAX PRINT DIMENSION: 2568+20 x 1560+20 x 16MM
MAX CUT DIMENSION: 2568x1560x16MM

RULE LENGTH
THRU-CUT: 26064MM
SCORE: 1709MM
• BEVEL-CUT: 6753MM
• V-CUT: 9973MM

MATERIALS NEEDED
• HONEYCOMB BOARD 16MM (such as Reboard, Beelite, X-Board…)
• BOARD QUANTITY: x2 OR x3
MINIMUM BOARD SIZE: 1600x2400MM (BEST 3000x1600MM)​​​​​​​
MINIMUN BOARD QUANTITY: 2 WITH 3000X1600MM & 3 WITH 2400X1600MM

SUITABLE FOR


• WIDE PRINTER UV, LED, SCREEN-PRINTING…
• FLATBED CUTTER
• TESTED ON ZUND G3 ON RE-BOARD (ICB) 16MM & BEELITE (HCB) 16MM
FILES INCLUDED
PRODUCTION FILES
• 1UP FILES IN AI, PDF, DXF
• NESTED FILES 1600X2400MM IN AI, PDF, DXF - 3 BOARDS
• NESTED FILES 1600X3000MM IN AI, PDF, DXF - 2 BOARDS

PREVIEW FILES
• 3D AR MODELS FOR ADOBE AERO
• 3D MODELS IN OBJ, DN (FOR DIMENSION)
• PROTOTYPES & PRODUCT PICTURES

TECHNICAL DATA
• 1 SUMMARY PDF WITH INFORMATION & SETUP

Click above to download it!
