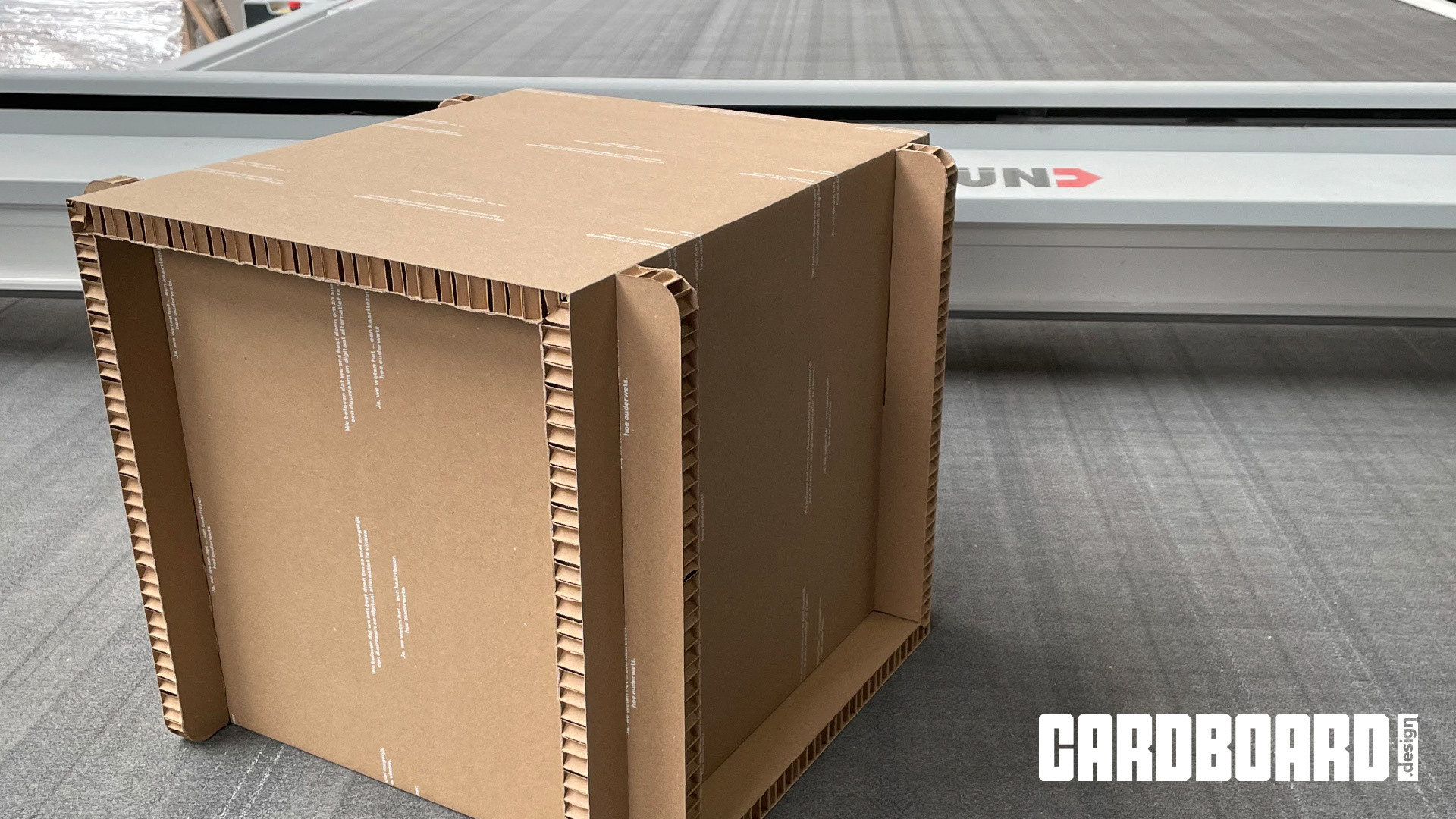

Import the template, place your artwork, print, cut & assemble!
Do you need attention on your product ? With a simple solution, lightweight & easy to produce? CARDBOARD.design Structural Templates are here for you!
FEATURES
• Structural files in .AI, .PDF, .DXF
• Ready for Honeycomb 16 mm
• Easy to print and cut
• Quick set up in half minute.
TECHNICAL INFORMATION
PLANO DIMENSION FOR 1UP
• PRINT DIMENSION: 972X788X16MM
• CUT DIMENSION: 932X748X16MM

RULE LENGTH
• THRU-CUT: 7529MM
• V-CUT: 1496MM

MATERIALS NEEDED
• HONEYCOMB BOARD 16MM
• MINIMUM BOARD SIZE: 1032X848MM

SUITABLE FOR
• WIDE PRINTER UV, LED, SCREEN-PRINTING…
• FLATBED CUTTER
• TESTED ON ZUND G3 ON RE-BOARD (ICB) 16MM & BEELITE (HCB) 16MM
FILES INCLUDED
PRODUCTION FILES
• 1UP FILES IN AI, EPS, PDF, DXF
• NESTED FILES 1200X2400MM IN AI, PDF, DXF
• NESTED FILES 1600X2400MM IN AI, PDF, DXF
• NESTED FILES 1600X3000MM IN AI, PDF, DXF

PREVIEW FILES
• 3D AR MODELS FOR ADOBE AERO
• 3D MODELS IN OBJ, FBX
• PROTOTYPES PICTURES

TECHNICAL DATA
• 1 SUMMARY PDF WITH INFORMATION

Click above to download it!
